Description
MikroTik Groove 52 Dual Band L3 Outdoor Wi-Fi AP RB Groove-52HPn 52HPn Grey PoE

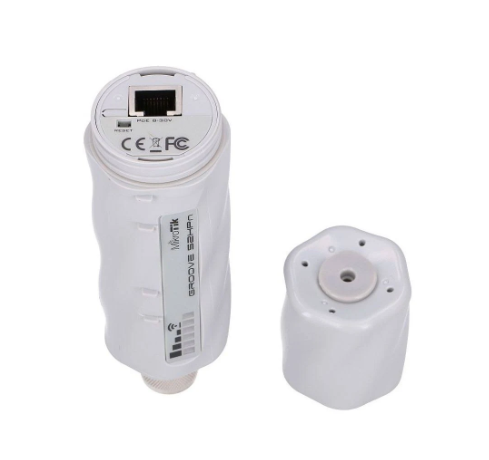

Mikrotik’s smallest outdoor series model – a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power!

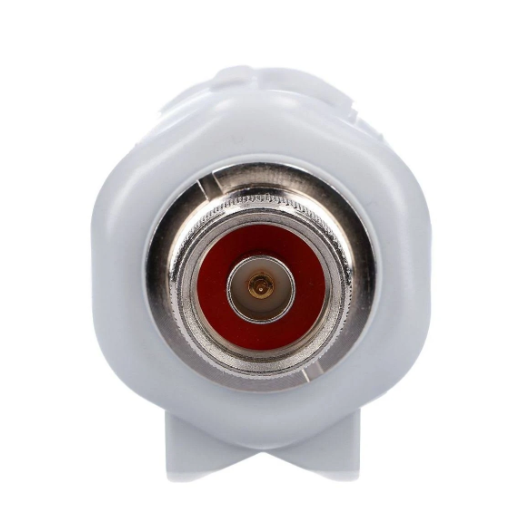

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

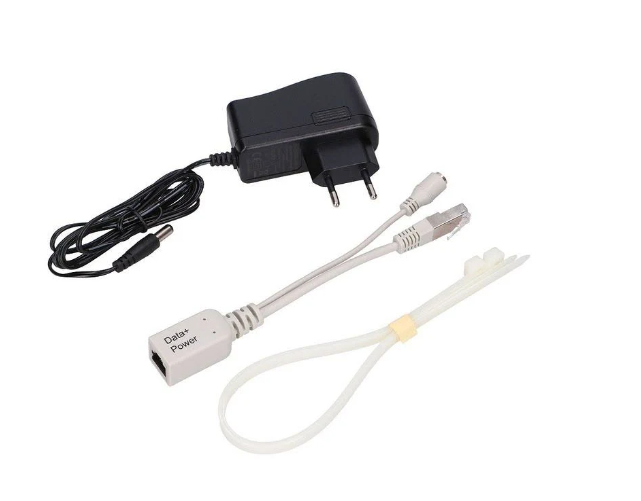

Box contains: Groove unit, mounting loops, PoE injector and power adapter
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 180x49x44mm, 193g |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100’000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $59.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 6 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 9-30 V |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz/5 GHz Max data rate | 150 Mbit/s |
| Wireless 2.4 GHz/5 GHz number of chains | 1 |
| Wireless 2.4 GHz/5 GHz standards | 802.11a/b/g/n |
| Wireless 2.4 GHz/5 GHz chip model | AR9342 |
| Wireless 2.4 GHz/5 GHz generation | Wi-Fi 4 |
Ethernet
| Details | |
|---|---|
| 10/100 Ethernet ports | 1 |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Beeper | Yes |
Certification & Approvals
| Details | |
|---|---|
| Certification | CE, FCC, IC, EAC, ROHS |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 27 | -97 |
| 11MBit/s | 27 | -91 |
| 6MBit/s | 27 | -93 |
| 54MBit/s | 24 | -75 |
| MCS0 | 27 | -93 |
| MCS7 | 23 | -70 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 27 | -93 |
| 54MBit/s | 23 | -75 |
| MCS0 | 26 | -93 |
| MCS7 | 22 | -70 |
Brand new. Never been used.
Colour: Grey
Warranty: None
Learn more about this product at https://mikrotik.com/product/RBGroove52HPnr2#fndtn-specifications
