Description

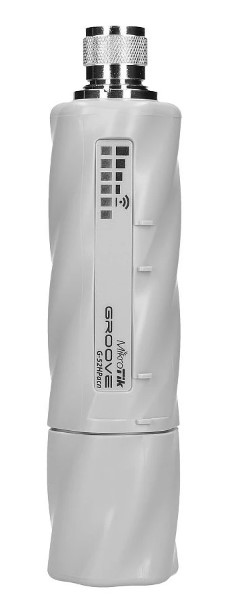

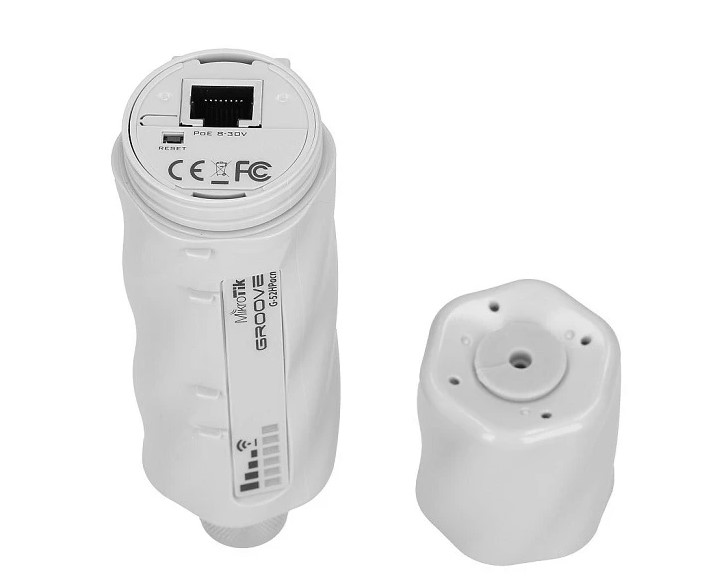

MicroTik Groove 52 ac
Mikrotik RBGrooveG-52HPacn – the smallest model in the outdoor series – fully functional wireless routerboard powered by Mikrotik firmware. The device with level 3 license – routerros level 3 system. Weather resistant, durable and ready to use. Now with 802.11ac support, Gigabit Ethernet port and selectable wireless band (2.4GHz or 5GHz, up to 80 MHz channel width). The new Gigabit Ethernet port will help you take full advantage of the high-speed 802.11ac wireless network. Groove supports 2.4GHz, 5GHz and all existing wireless modes (802.11 b/g/n for 2.4GHz and 802.11 ac/n/a for 5GHz). Two models are available, Groove for CPE and PtP connections and GrooveA, which also supports AP mode.
Features:
- IEEE 802.11ac standard
- backward compatibility with older protocols – 802.11a/b/g/n
- channels with a maximum width of 80 MHz in 5 GHz and 40 MHz in 2.4 GHz
- single-chain
- N-male connector
- Level4 licence
Mikrotik Groove 52 ac technology

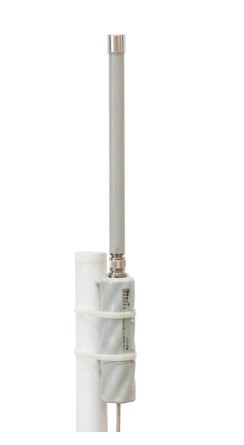

The device has a built-in N-male connector and mast mounting points, so you can connect it directly to the antenna or use standard antenna cable. LED indicators facilitate installation and alignment. Groove A (AP model) includes a 2.4/5GHz dual-band directional antenna (omnidirectional antenna) (6dBi 2.4GHz, 8dBi 5GHz), so you can use the device right out of the box or use your own antenna. The box contains: Groove device, mounting ties, PoE injector, power supply, Omni 6/8dBi 2.4/5GHz Omni antenna (model A only). Microtik rbgrooveg52hpacn (Rbgrooveg52hpacn 24ghz 5ghz 1x rj45) has LEDs, gigabit ethernet port. If you want your wireless networks to work without any problems choose microtik routerboard groove (ac rbgrooveg52hpacn). We will be happy to help you choose your network equipment and provide technical support.
| Features / filters | |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
| Operating frequency | 2.4 GHz, 5 GHz, |
| Wireless network standards | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, |
| CPU frequency | 720 MHz |
| Device type | Client device |
| RAM memory | 64MB |
| Type of device power supply | Passive PoE |
| Basic technical parameters | |
| Product code | RBGrooveG-52HPacn |
| CPU frequency | QCA9556 720 MHz |
| Number of RAM | 64 mb frames |
| Amount of memory | 16 MB Flash |
| 10/100/1000 Ethernet ports | 1 |
| Frequencies | 2.4 GHz and 5 GHz |
| Frequency range | international 5150 – 5875 MHz, international 2412 – 2484 MHz |
| Supported standards | 802.11ac and 802.11b/g/n |
| Channel width | 5*/10*/20/40/80 MHz and 5/10/20/40/40 MHz |
| Wireless system model | QCA9889 |
| Chains | Single-chain |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| PoE in | Yes |
| Supported voltage range | 11 V – 30 V (passive PoE) |
| Operating temperature range | -40 to 70° C |
| Licence level | 4 (RBGrooveGA) 3 (RBGrooveG) |
| Dimensions | 177 x 44 x 44 mm |
| Energy consumption | 5 W |
SUPPORT
FAQ
Mikrotik’s smallest outdoor series model – a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power!
With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

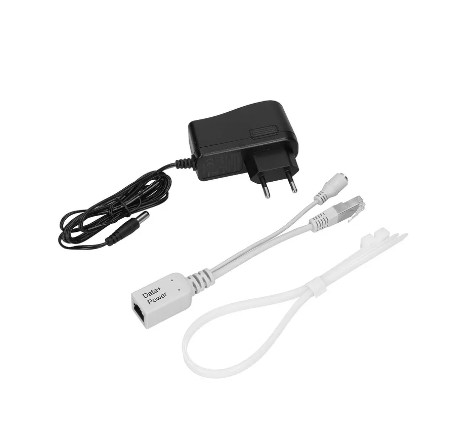

Box contains: Groove unit, mounting loops, PoE injector and power adapter
Brand new. Never been used.
Colour: Grey
Warranty: None
